Neural-ODE reproducibility and fitted latent-ODE lane

The neural-ODE lane now has two closed FAST workflows:

  1. a deterministic dataset/baseline/calibration bundle; and

  2. a fitted random-feature latent ODE with train/validation/test metrics.

This is still claim_level = "validation" because the data are FAST trajectories, not production reconnection campaigns. The lane writes model parameters, predictions, metrics, plots, and hashes.

Dataset contract

Generate the FAST deterministic dataset with:

mhx neural-ode dataset \
  --outdir outputs/neural_ode/seed_qi_fast \
  --seeds 0,1,2,3,4,5 \
  --nx 16 --ny 16 \
  --steps 24 \
  --dt 1e-2

Expected files:

  • dataset.npz

  • splits.json

  • baseline_metrics.json

  • calibration.json

  • experiment_spec.json

  • validation.json

  • figures/dataset_targets.png

  • figures/baseline_rmse.png

  • figures/calibration_coverage.png

  • manifest.json

The dataset arrays are:

Array

Shape

Meaning

seeds

(n_seed,)

Deterministic sample identifiers.

times

(n_time,)

Saved simulation times.

features

(n_seed, n_time, n_feature)

Diagnostic histories used as model inputs.

targets

(n_seed, n_time, n_target)

Forecast targets selected from the feature tensor.

Default features are mode amplitude, magnetic energy, kinetic energy, total energy, magnetic-divergence error, \(\|\psi\|_2\), and \(\|\omega\|_2\). Default targets are mode amplitude, total energy, and magnetic-divergence error.

Baselines

The lane evaluates no-training baselines:

  • persistence: \(\hat y(t)=y(t_\mathrm{obs})\);

  • linear-prefix extrapolation: fit a two-point slope from the observed prefix;

  • train-mean history: use the mean target history over training seeds.

For each baseline and split, MHX writes MAE, RMSE, maximum absolute error, and target-wise scores:

\[ \mathrm{MAE}=\langle |y-\hat y|\rangle,\qquad \mathrm{RMSE}=\sqrt{\langle (y-\hat y)^2\rangle}. \]

The calibration file estimates train residual standard deviations and reports empirical one- and two-sigma coverage on train/validation/test splits. These checks are not a probabilistic model; they are a minimum benchmark a later trainable latent or neural ODE must beat.

Fitted latent ODE

Train the deterministic CI-scale model with:

mhx neural-ode train \
  --outdir outputs/neural_ode/latent_ode_fast \
  --seeds 0,1,2,3,4,5 \
  --nx 16 --ny 16 \
  --steps 24 \
  --hidden-size 8

The fitted model is the autonomous ODE

\[ \frac{dz}{dt}=W\,\phi(z),\qquad \phi(z)=\left[z,\tanh(zR+b),1\right], \]

where \(z\) contains the target diagnostics. The random feature matrix \(R\) and bias \(b\) are deterministic from --model-seed; \(W\) is fitted by ridge regression to train-set finite differences,

\[ W=\arg\min_W \|XW-\dot Z\|_2^2+\lambda\|W\|_2^2. \]

Standalone mhx neural-ode train first writes the dataset bundle when it is not provided, then writes the fitted-model artifacts. Expected files therefore include the dataset contract plus:

  • latent_ode_model.json

  • latent_ode_metrics.json

  • latent_ode_predictions.npz

  • failure_modes.json

  • figures/latent_ode_predictions.png

  • figures/latent_ode_rmse_comparison.png

  • figures/latent_ode_failure_modes.png

  • manifest.json

The metric file reports train/validation/test MAE, RMSE, target-wise errors, the best baseline test RMSE, and the latent-ODE test-RMSE ratio to that baseline. The ratio is reported rather than hidden; this keeps the current model honest and makes future neural-ODE improvements directly comparable.

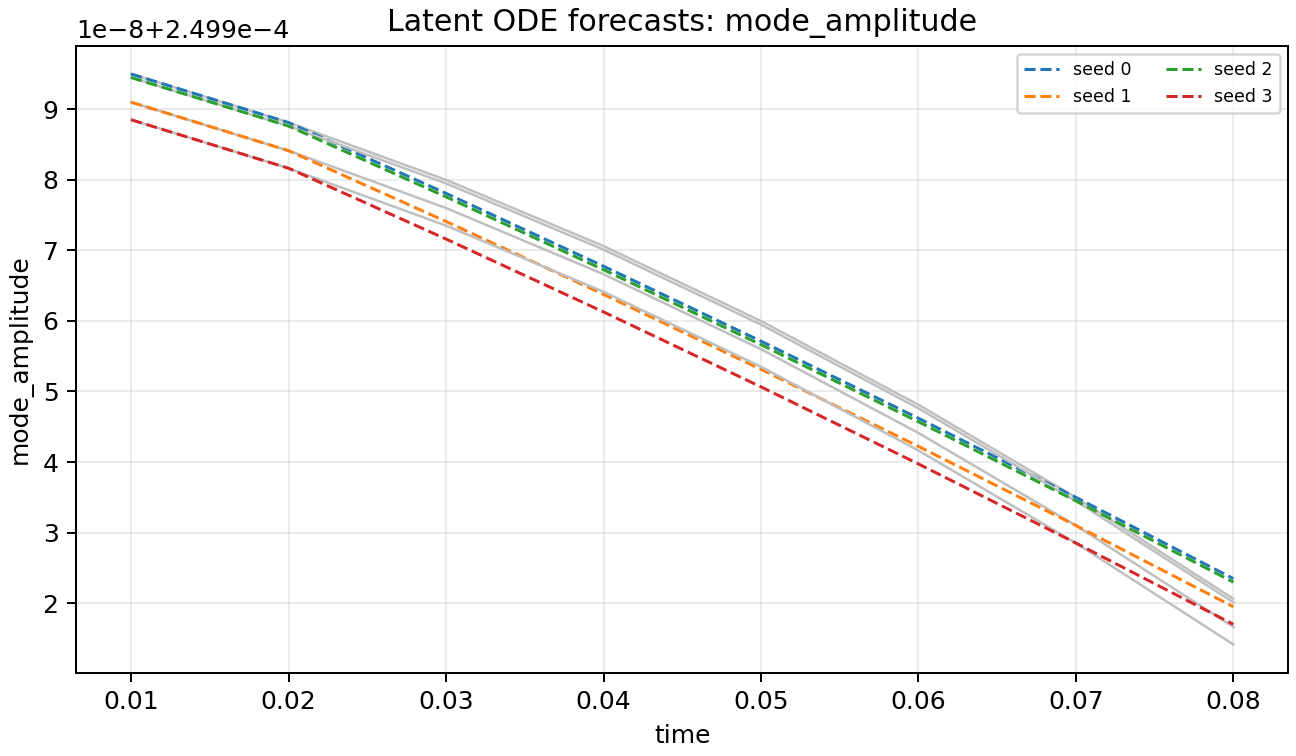

Latent-ODE predictions

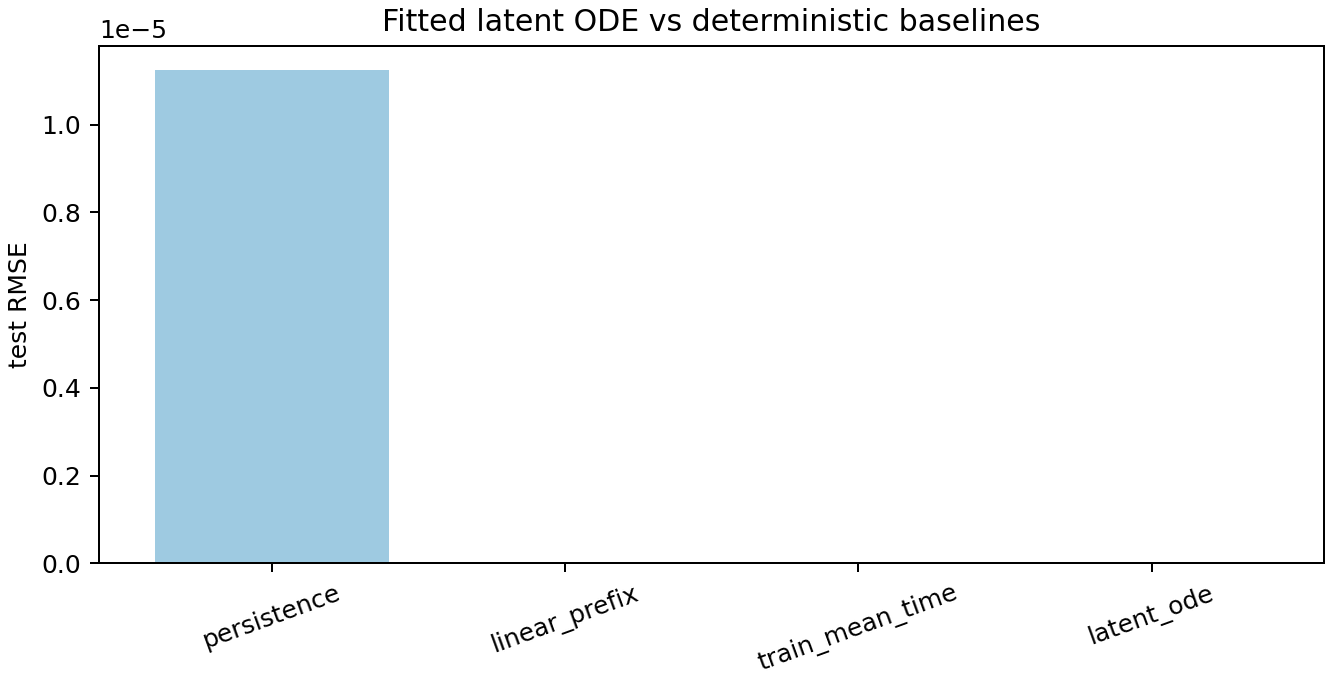

Latent-ODE RMSE comparison

The failure-mode report is a deliberately skeptical artifact, not a pass/fail claim that the latent ODE is production-ready. It records train-vs-test RMSE, late-vs-early forecast drift, and latent-vs-best-baseline ratios:

\[ R_\mathrm{drift} = \frac{\mathrm{RMSE}_\mathrm{late,test}} {\max(\mathrm{RMSE}_\mathrm{early,test},\epsilon)} , \qquad R_\mathrm{seed} = \frac{\mathrm{RMSE}_\mathrm{test}} {\max(\mathrm{RMSE}_\mathrm{train},\epsilon)} . \]

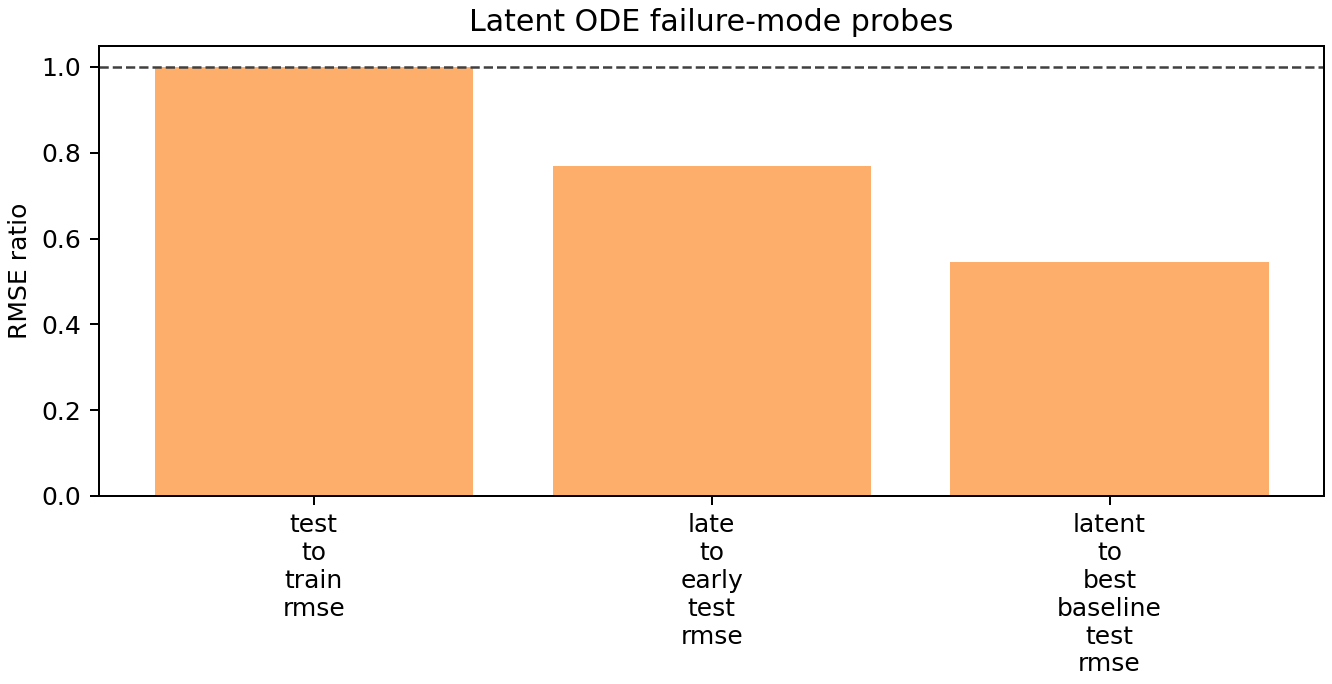

Latent-ODE failure-mode probes

Claim boundary

The manifest is claim_level = "validation". The current lane supports claims that the dataset/split/baseline/calibration contract is deterministic and that the fitted latent-ODE experiment is reproducible and schema-valid. It does not support claims that the model generalizes to production nonlinear reconnection until it is trained and tested on production-quality trajectories.

validation.json uses schema mhx.neural_ode.reproducibility.gates.v1 and gates four prerequisites together: the source seed-QI validation passed, the split manifest is disjoint and complete, all baseline arrays are finite, and the calibration report was generated from the same target tensor.

mhx neural-ode train uses schema mhx.neural_ode.training.gates.v1 and adds gates for finite fitted coefficients, finite predictions, matching prediction shapes, and held-out test forecasts.
